Configurador Data Center

1. Contact Data

Company / Client

Proyect

Applicant

Email

Country

Phone Number

Date

Consecutivo

2. Model Selection

Important: you can only choose Enterprise or Edge.

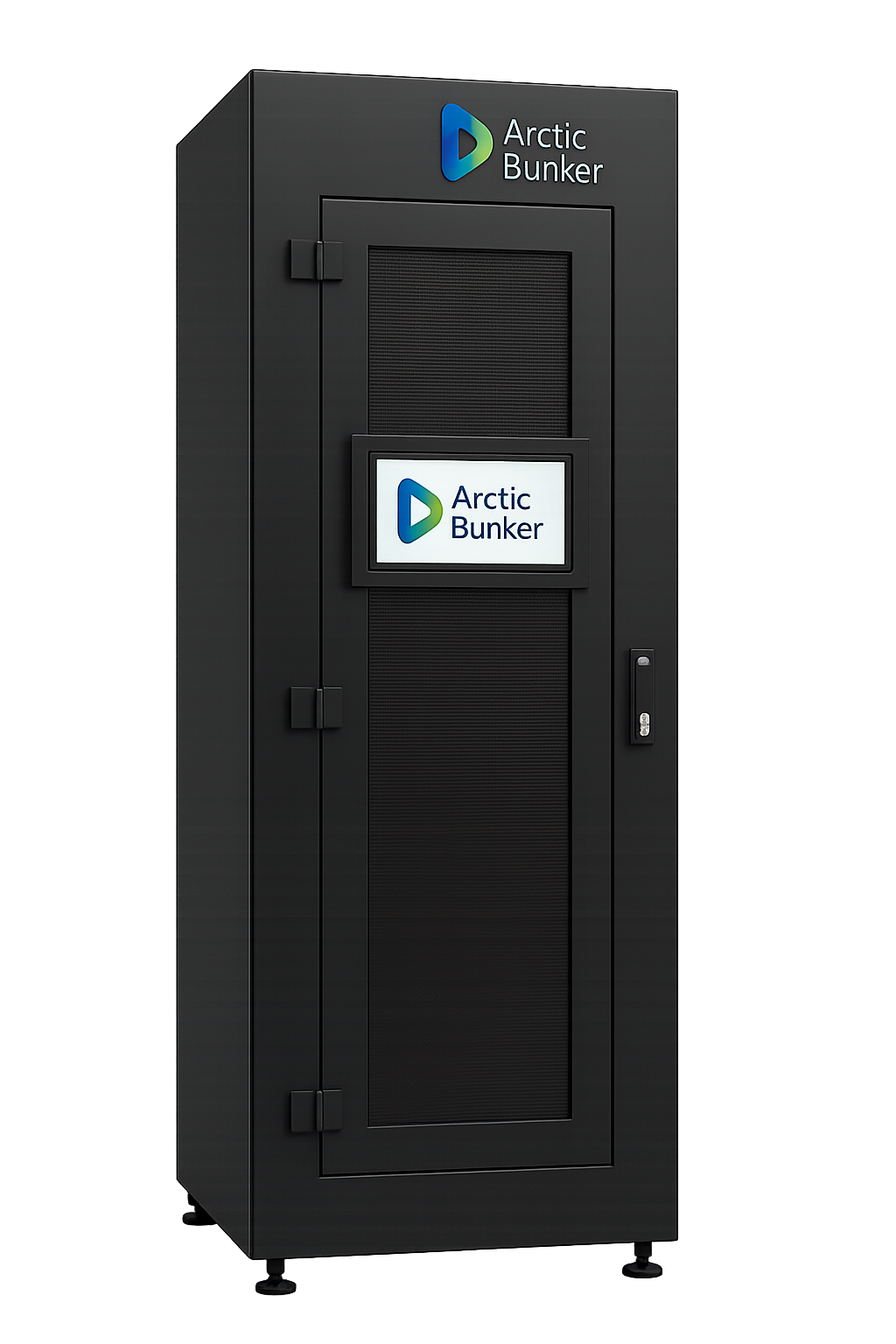

Arctic Bunker Enterprise

Module Monitoring 1U (**Localhost or Web)
access control 3 in 1 (keyboard, RFID, fingerprint)
Door sensor
Smoke sensor
Magnetic Lock
Temperature & Humidity
Double door (Emergency door) 2 door front (1 Tempered Glass Door, 1 Micro-perforated Mesh Door)
10" color touchscreen
Manual lock with security key
Dipcoat-primed
Pantone Black color

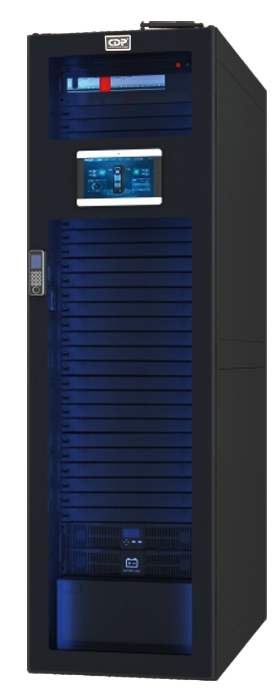

Arctic Bunker Edge

Black appearance, 42U high-strength, sealed, dust-proof Front door: acrylic glass single door Back door: sheet metal sealed single door (with a hole in the lower part), a hole in the rear part of the bottom of the cabinet

Intelligent monitoring screen ePAD ×1
2 front & rear LED lights + blue/red/green atmosphere lights
4 movable wheels and 4 supporting feet
Pop-up door system
Single cabinet control module eCTRL-IS
Side door panel
Temperature & humidity sensor ×1
Water immersion detection box ×1 (5m leak rope)
Smoke sensor ×1
Four-in-one access control unit ×1

ABArctic Bunker

EDEdge

ENEnterprise

612600mm width x 1200mm depth 814800mm width x 1400mm depth 812800mm width x 1200mm depth

MDC Model

MDC Quantity

3. Self-Contained Air Conditioning

Nomenclatura de modelos de aire acondicionado

Z Inrow

X Inrack

DX Direct Expansion

Y Inrack All In One (Available only for MDC Edge)

kW The number in the model indicates the power (example: ACED12.8ZDXV = 12.8 kW)

If you choose Edge, you will only be able to select Edge. If you choose Enterprise, you will be able to choose air Enterprise o Edge.

Air Family

Air Model

Air Quantity

4. PDU

PDU Quantity

PDU Model

SPDUSmart Power Distribution Unit

11120Vac

21220Vac / 240Vac

88 Outlets

2424 Outlets
